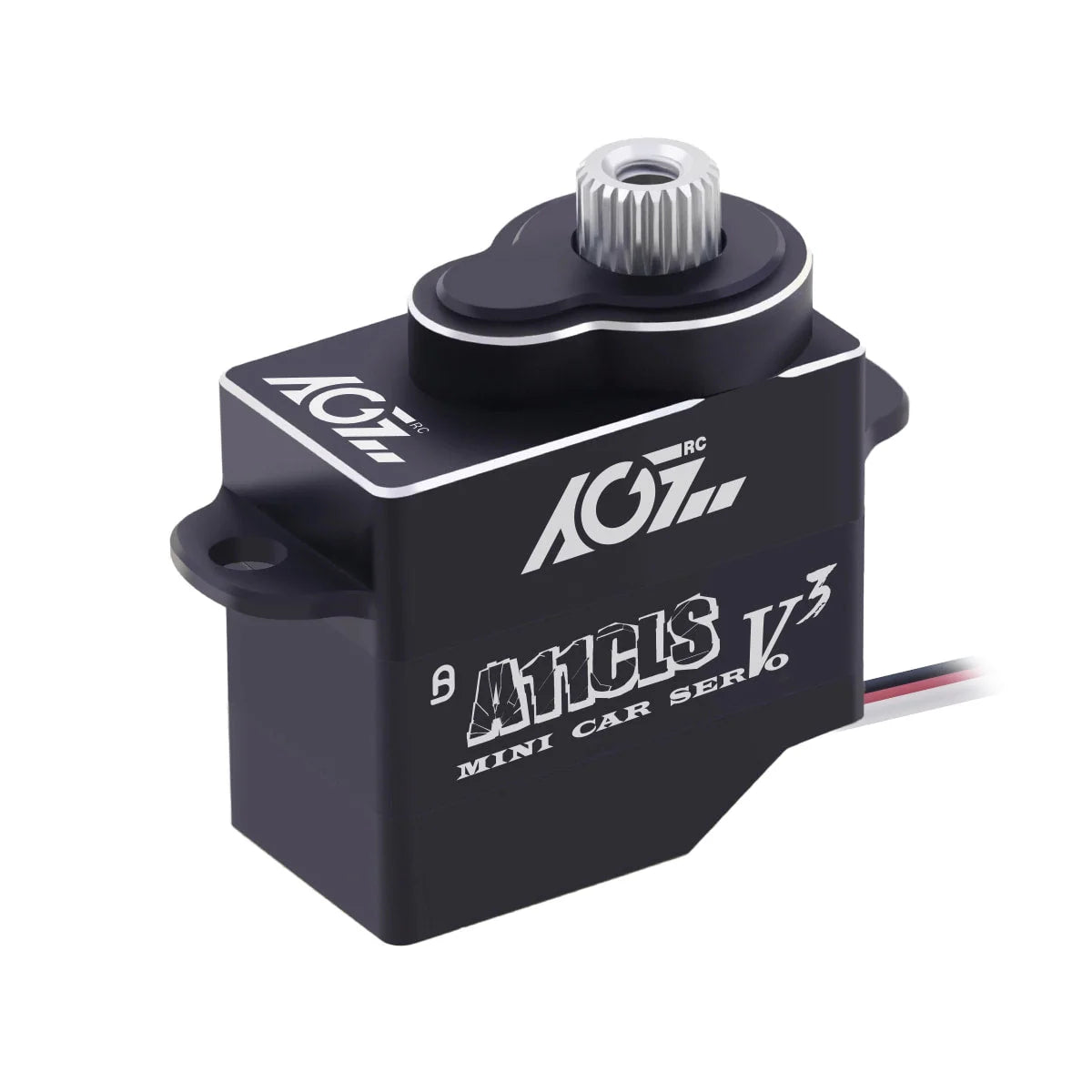

AGFRC - A11CLS V3 SERVO (Black - 25T Spline)

AGFRC Mini-Z-Car Micro Steering Servo - 11g Upgrade Programmable 0.050sec High Speed Full Metal Gear Mini Digital Coreless Servo for Mini Z Car, Control Angle 180° (A11CLS V3)

Feature

• High performance mini-z digital servo
• High precision Titanium gear
• High quality coreless motor
• Fast cooling Aluminum case
• Programmable digital circuit for parameter adjustment via AGF-SPV3 servo programmer, such as angle, speed, torque, SANWA SSR mode, etc.
• Ideal for Mini-Z Car, 1/18, 1/24, 1/27, 1/28 Scale Cars etc.( Such as DRZ V2, BMR-X, DriftArt 2 ,WLtoys K989/969, Mini-Q, etc.)

Note: USB servo programmer is not included. If need the programmer, please search the Asin: B09NR1KPM6

Specification

• Brand: AGFRC
• Control System: PWM, 1520uS/333hz
• Dead Band: 3 uSec
• Mechanical Angle: No Limit
• Operating Travel: 180°±10°, 500 to 2500 uSec
• Horn Gear Spline: 25T-φ4.94mm
• Bearing: Double Ball Bearing
• Operating Voltage: 4.8-6.0V
• Operating Speed: 0.065sec/60°@4.8V
• Operating Speed: 0.050sec/60°@6.0V
• Stall Torque: 1.2 kg-cm (16.66 oz-in) @4.8V
• Stall Torque: 1.4 kg-cm (19.44 oz-in) @6.0V
• Gear: Titanium
• Motor: Coreless
• Case Material: Aluminium
• Size: 20*21*11.3mm (0.79 x 0.83 x 0.44 in)
• Weight: 11g
• Certification: CE, RoHs
• Wire: JST 80mm / 30AWG

Package Included:

• 1 x AGFRC A11CLS V3 Coreless Servo
• 1 x Programmed Cable / JR Plug Adapter
• 1 x Accessory Kit
